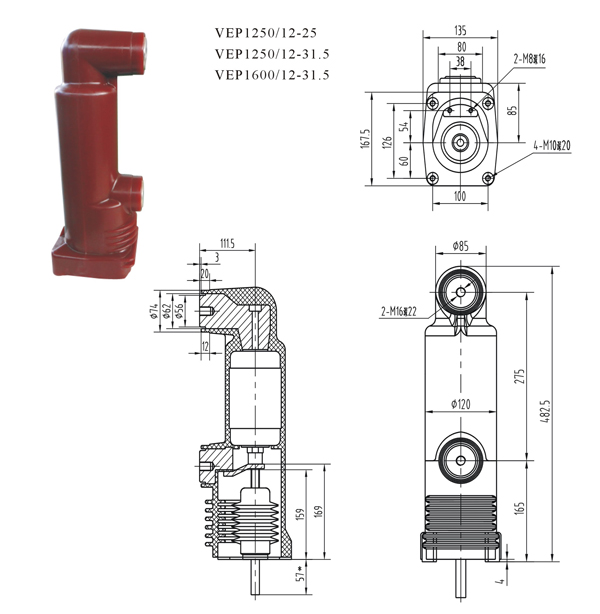

Main Technical Data
|
|
|
|
Rated voltage
|
kv
|
12
|
|
Rated current
|
A
|
1250/1600
|
|
Rated frequency
|
Hz
|
50
|
|
Rated short-circuit breaking current
|
kA
|
25/31.5
|
|
Operations of short-circuit breaking current interruption
|
times
|
50
|
|
Rated short-circuit making current
|
kA
|
63/80
|
|
Rated short-time withstand and current(4s)
|
kA
|
31.5
|
|
Rated single capacitor bank breaking current
|
A
|
630
|
|
Rated back-to-back capacitor bank breaking current
|
A
|
400
|
|
Short-time(1min) power-frequency withstand voltage
|
kv
|
48
|
|
Rated lighting impulse withstand voltage(peak)
|
kv
|
85
|
|
Machanical life
|
times
|
20000
|
|
Contact closing force due to bellows and atmosphere
|
N
|
100±30
|
|
Counterforce at rated contact force
|
N
|
200±30
|
|
Circuit resistance at rated contact force
|
μΩ
|
≤25
|
|
Shelf life
|
years
|
20
|
|
Part discharge
|
pc
|
≤5
|
|
Rated operating sequence
|
|
0-0.3-CO-180s -CO
|
|
|
|
|
|
Mechanical Data of Circuit-Bearking Equipped with the Interrupters
|
|
|
|
Contact erosion limit
|
mm
|
3
|
|
Rated contact stroke
|
mm
|
9±1
|
|
contac connection stroke
|
m/s
|
3.5±1
|
|
Average opening speed
|
m/s
|
1.1±0.2
|
|
Average closing speed
|
m/s
|
0.7±0.2
|
|
Added contact force
|
N
|
2500/3150±200
|
|
Bounce duration of contact closing
|
ms
|
≤2
|
|
Out of simultaneity of contact closing and opening
|
mm
|
≤1
|
|
Max.overtravel
|
ms
|
≤2
|
|
|
|
|
|
Note:Rated characteristics can be given on requirment
|
